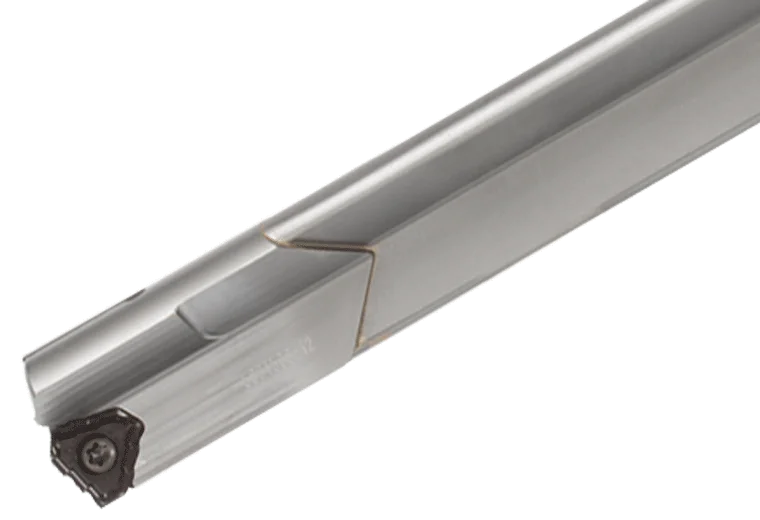

TRLG18.00X800-23A Handla nu

Beskrivning

Enhet M Applikation | Gundrill | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 18 mm Cutting Diameter Maximum (DCX) 18 mm Cutting Diameter Minimum (DCN) 18 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 744 mm Master Insert Identification (MIID) TOHT080305R-NDJ Point Length (PL) 2.2 mm Overall Length (OAL) 802.2 mm Shank Length (LS) 56 mm Usable Length (LU) 719.2 mm Usable Length Diameter Ratio (ULDR) 40 Paketvikt 1.08 Diameter ⌀ 18 mm Diameter ⌀ 18 mm Totallängd 802.2 mm Antal skär z 1
