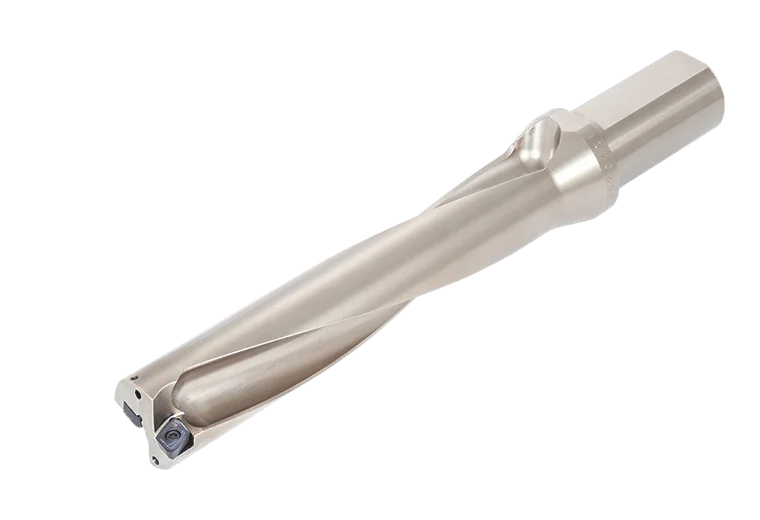

TDX215F25-5 Bästa pris

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 21.5 mm Cutting Diameter Maximum (DCX) 21.5 mm Cutting Diameter Minimum (DCN) 21.5 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 5 Flange Diameter (DF) 32 mm Functional Length (LF) 128.5 mm Length Chip Flute (LCF) 112 mm Master Insert Identification (MIID) XPMT06X308R-DJ Point Length (PL) 0.49 mm Overall Length (OAL) 183 mm Shank Length (LS) 54 mm Usable Length (LU) 108 mm Usable Length Diameter Ratio (ULDR) 5 Paketvikt 0.48 Produktslag Modulära insatsborr Längd xD 5xD Diameter ⌀ 21.5 mm Diameter ⌀ 21.5 mm Totallängd 183 mm Antal skär z 5
