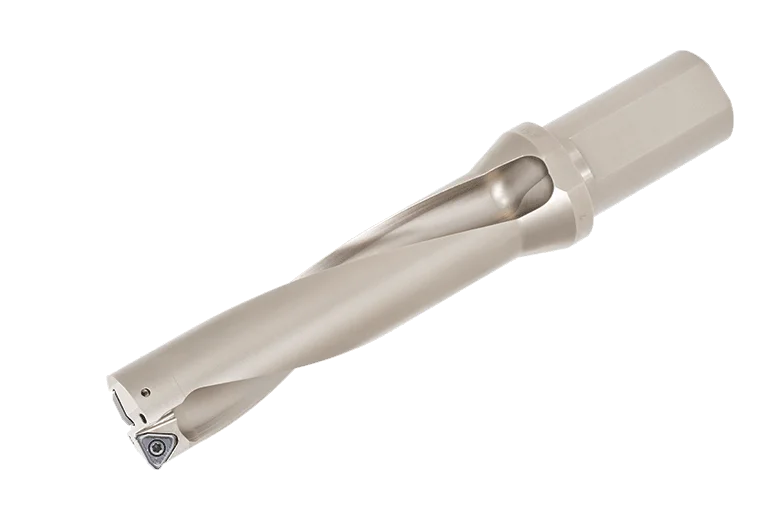

TDSU1750F-4 Rabatt

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/2″ Cutting Diameter (DC) 1-3/4″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 2.165″ Functional Length (LF) 8.428″ Master Insert Identification (MIID) WWMU11X512R-DJ Point Length (PL) 0.059″ Overall Length (OAL) 11.223″ Shank Length (LS) 2.736″ Usable Length (LU) 7.059″ Usable Length Diameter Ratio (ULDR) 4 Paketvikt 4.6738 Produktslag Modulära insatsborr Längd xD 4xD Antal skär z 2
