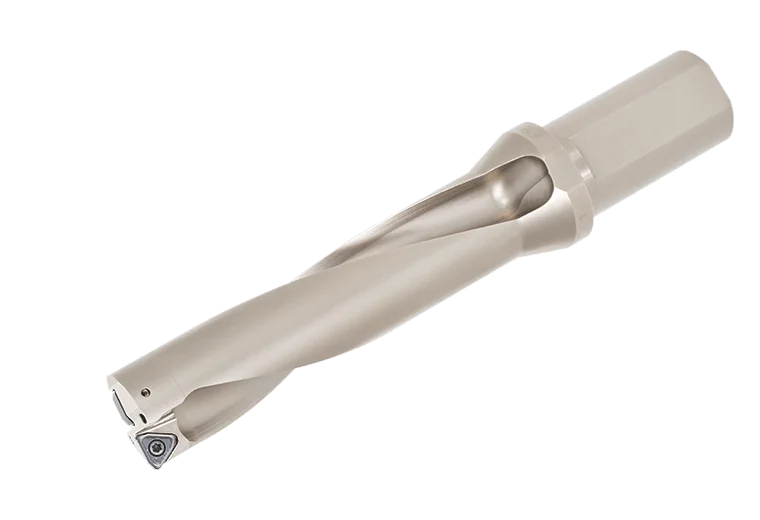

TDSU1312F-4 Köp nu

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/2″ Cutting Diameter (DC) 1.312″ Cutting Diameter Maximum (DCX) 1.312″ Cutting Diameter Minimum (DCN) 1.312″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 1.969″ Functional Length (LF) 6.374″ Master Insert Identification (MIID) WWMU09X510R-DJ Point Length (PL) 0.051″ Overall Length (OAL) 9.161″ Shank Length (LS) 2.736″ Usable Length (LU) 5.299″ Usable Length Diameter Ratio (ULDR) 4 Paketvikt 3.0953 Produktslag Modulära insatsborr Längd xD 4xD Antal skär z 2
