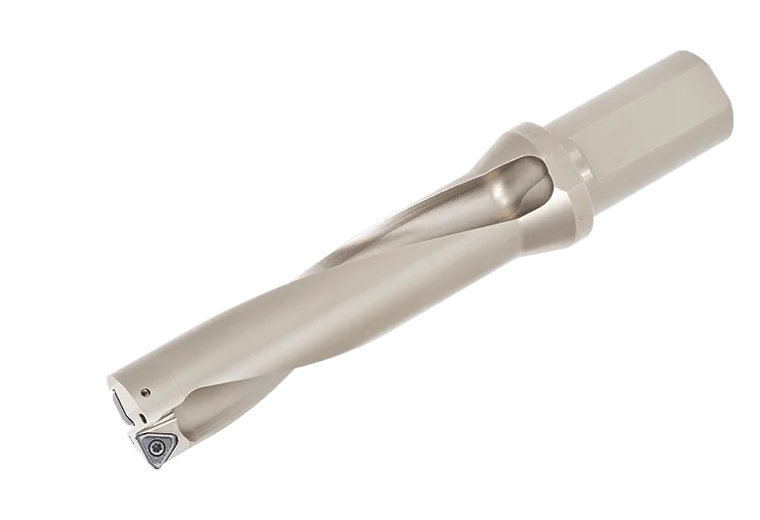

TDSU1187F-4 Populär

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/4″ Cutting Diameter (DC) 1.187″ Cutting Diameter Maximum (DCX) 1.187″ Cutting Diameter Minimum (DCN) 1.187″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 1.575″ Functional Length (LF) 5.79″ Master Insert Identification (MIID) WWMU08X408R-DJ Point Length (PL) 0.043″ Overall Length (OAL) 8.174″ Shank Length (LS) 2.342″ Usable Length (LU) 4.791″ Usable Length Diameter Ratio (ULDR) 4 Paketvikt 1.9952 Produktslag Modulära insatsborr Längd xD 4xD Antal skär z 2
