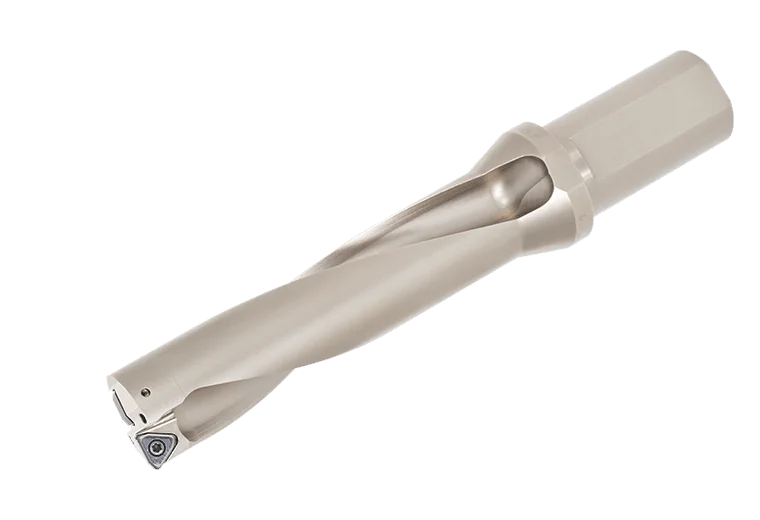

TDSU0875F-4 Outlet

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1″ Cutting Diameter (DC) 7/8″ Cutting Diameter Maximum (DCX) 7/8″ Cutting Diameter Minimum (DCN) 7/8″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 1.457″ Functional Length (LF) 4.335″ Master Insert Identification (MIID) WWMU05X205R-DJ Point Length (PL) 0.031″ Overall Length (OAL) 6.708″ Shank Length (LS) 2.343″ Usable Length (LU) 3.531″ Usable Length Diameter Ratio (ULDR) 4 Paketvikt 1.1508 Produktslag Modulära insatsborr Längd xD 4xD Antal skär z 2
