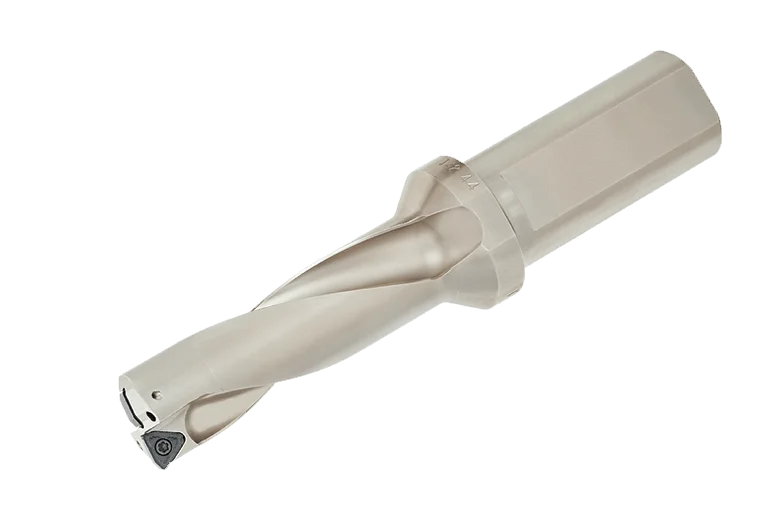

TDSU-0750FS-03 Lågt pris

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1″ Cutting Diameter (DC) 3/4″ Cutting Diameter Maximum (DCX) 3/4″ Cutting Diameter Minimum (DCN) 3/4″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 1.457″ Functional Length (LF) 3.341″ Master Insert Identification (MIID) WWMU05X205R-DJ Point Length (PL) 0.031″ Overall Length (OAL) 5.653″ Shank Length (LS) 2.28″ Usable Length (LU) 2.281″ Usable Length Diameter Ratio (ULDR) 3 Paketvikt 0 Produktslag Modulära insatsborr Längd xD 3xD Antal skär z 2
