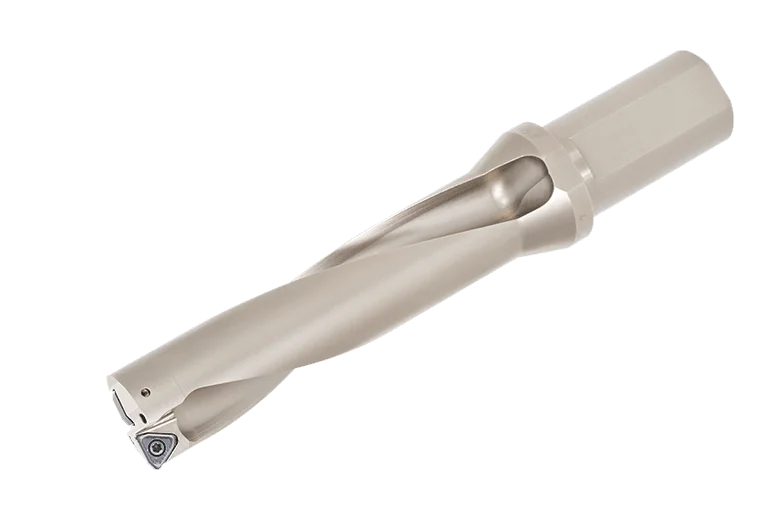

TDS360F40-4 Köp online

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 40 mm Cutting Diameter (DC) 36 mm Cutting Diameter Maximum (DCX) 36 mm Cutting Diameter Minimum (DCN) 36 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 50 mm Functional Length (LF) 175 mm Master Insert Identification (MIID) WWMU09X510R-DJ Point Length (PL) 1.3 mm Overall Length (OAL) 245.3 mm Shank Length (LS) 69 mm Usable Length (LU) 145.3 mm Usable Length Diameter Ratio (ULDR) 4 Paketvikt 1.584 Produktslag Modulära insatsborr Längd xD 4xD Diameter ⌀ 36 mm Diameter ⌀ 36 mm Totallängd 245.3 mm Antal skär z 2
