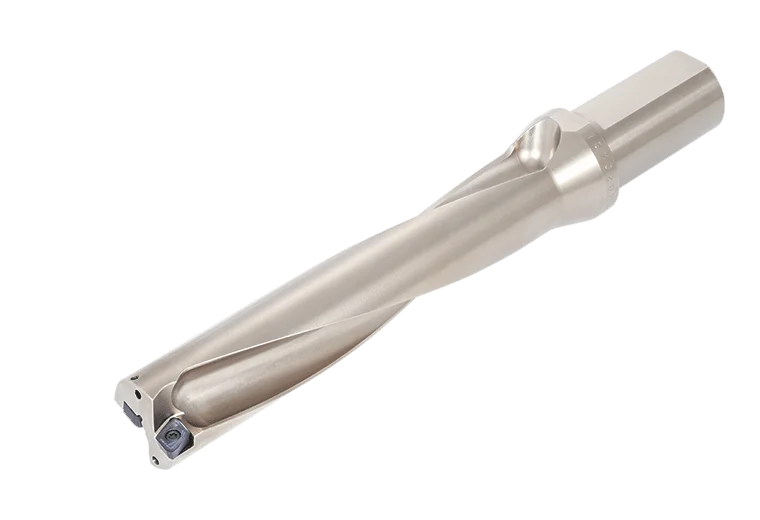

Snabb leverans TDX205F25-5

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 20.5 mm Cutting Diameter Maximum (DCX) 20.5 mm Cutting Diameter Minimum (DCN) 20.5 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 5 Flange Diameter (DF) 32 mm Functional Length (LF) 123.5 mm Length Chip Flute (LCF) 107 mm Master Insert Identification (MIID) XPMT06X308R-DJ Point Length (PL) 0.49 mm Overall Length (OAL) 178 mm Shank Length (LS) 54 mm Usable Length (LU) 103 mm Usable Length Diameter Ratio (ULDR) 5 Paketvikt 0.469 Produktslag Modulära insatsborr Längd xD 5xD Diameter ⌀ 20.5 mm Diameter ⌀ 20.5 mm Totallängd 178 mm Antal skär z 5
