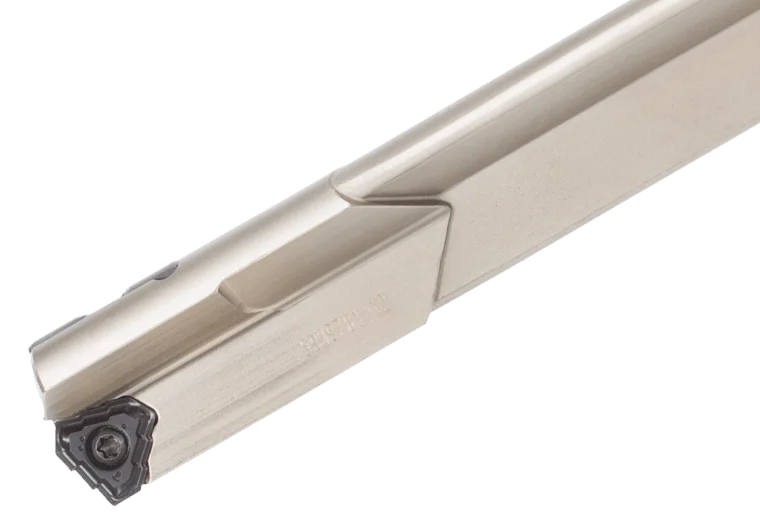

Rabatter MCTR15.00XM25-35

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 15 mm Cutting Diameter Maximum (DCX) 15 mm Cutting Diameter Minimum (DCN) 15 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 598 mm Master Insert Identification (MIID) TOHT070304R-NDJ Point Length (PL) 2 mm Overall Length (OAL) 656 mm Shank Length (LS) 56 mm Usable Length (LU) 562 mm Usable Length Diameter Ratio (ULDR) 35 Paketvikt 0.88 Längd xD 35xD Diameter ⌀ 15 mm Diameter ⌀ 15 mm Totallängd 656 mm Antal skär z 1
