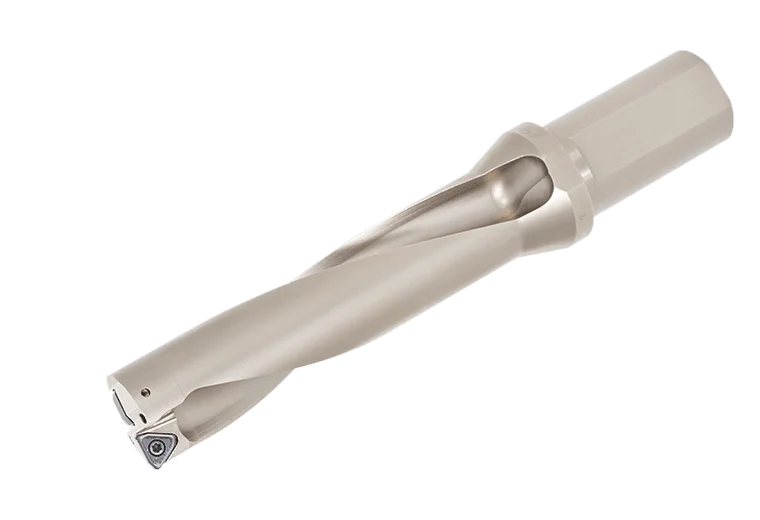

Populär TDSU1875F-4

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/2″ Cutting Diameter (DC) 1-7/8″ Cutting Diameter Maximum (DCX) 1-7/8″ Cutting Diameter Minimum (DCN) 1-7/8″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 2.165″ Functional Length (LF) 9.009″ Master Insert Identification (MIID) WWMU13X512R-DJ Point Length (PL) 0.071″ Overall Length (OAL) 11.813″ Shank Length (LS) 2.736″ Usable Length (LU) 7.571″ Usable Length Diameter Ratio (ULDR) 4 Paketvikt 5.2911 Produktslag Modulära insatsborr Längd xD 4xD Antal skär z 2
