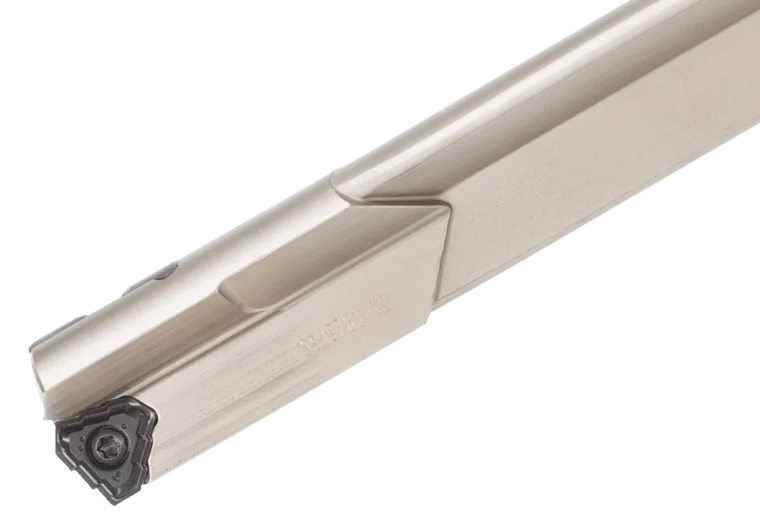

Outlet MCTR12.00XM20-45

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 20 mm Cutting Diameter (DC) 12 mm Cutting Diameter Maximum (DCX) 12 mm Cutting Diameter Minimum (DCN) 12 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 615 mm Master Insert Identification (MIID) LOGT060204R-NDJ Point Length (PL) 1.8 mm Overall Length (OAL) 666.8 mm Shank Length (LS) 50 mm Usable Length (LU) 586.8 mm Usable Length Diameter Ratio (ULDR) 45 Paketvikt 0 Längd xD 45xD Diameter ⌀ 12 mm Diameter ⌀ 12 mm Totallängd 666.8 mm Antal skär z 1
