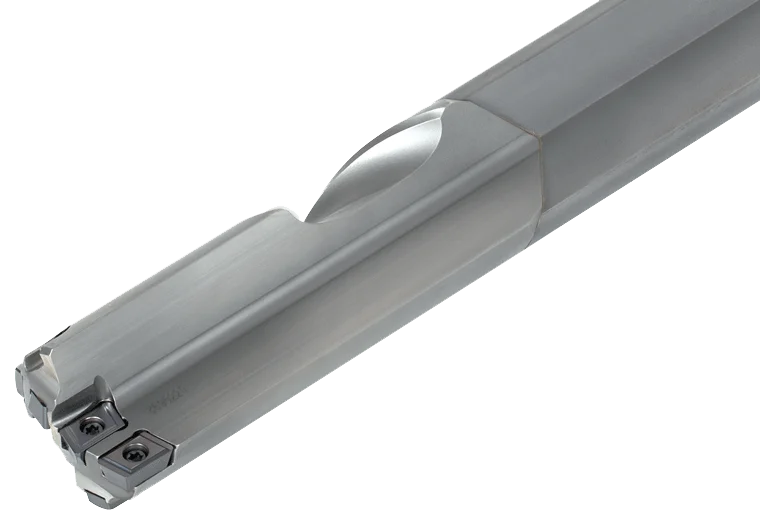

MCTR37.00XFM40-15 Endast idag

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 40 mm Cutting Diameter (DC) 37 mm Cutting Diameter Maximum (DCX) 37 mm Cutting Diameter Minimum (DCN) 37 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Functional Length (LF) 636 mm Master Insert Identification (MIID) FBM080408L-G-C Point Length (PL) 3 mm Overall Length (OAL) 708 mm Shank Length (LS) 69 mm Usable Length (LU) 558 mm Usable Length Diameter Ratio (ULDR) 15 Paketvikt 0 Produktslag Modulära insatsborr Längd xD 15xD Diameter ⌀ 37 mm Diameter ⌀ 37 mm Totallängd 708 mm Antal skär z 2
