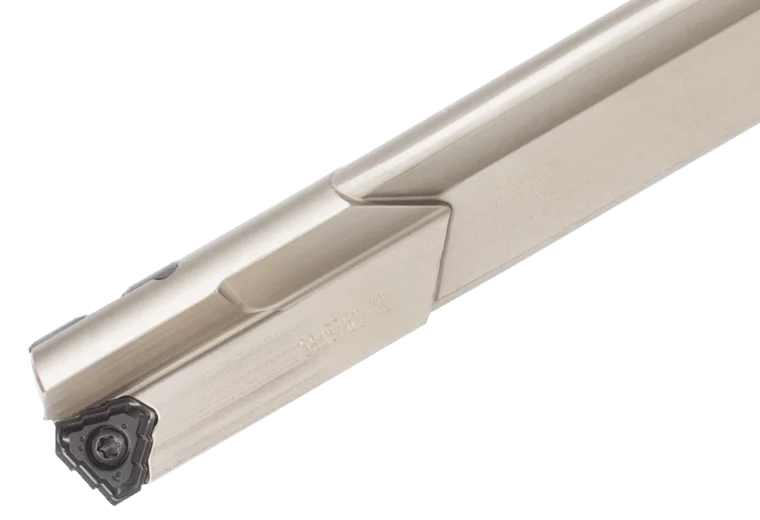

MCTR20.62XU31.75-15 Extra rabatt

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/4″ Cutting Diameter (DC) 0.8118″ Cutting Diameter Maximum (DCX) 0.8118″ Cutting Diameter Minimum (DCN) 0.8118″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 14.173″ Master Insert Identification (MIID) TOHT100305R-NDJ Point Length (PL) 0.126″ Overall Length (OAL) 16.661″ Shank Length (LS) 2.362″ Usable Length (LU) 12.528″ Usable Length Diameter Ratio (ULDR) 15 Paketvikt 1.9621 Längd xD 15xD Antal skär z 1
