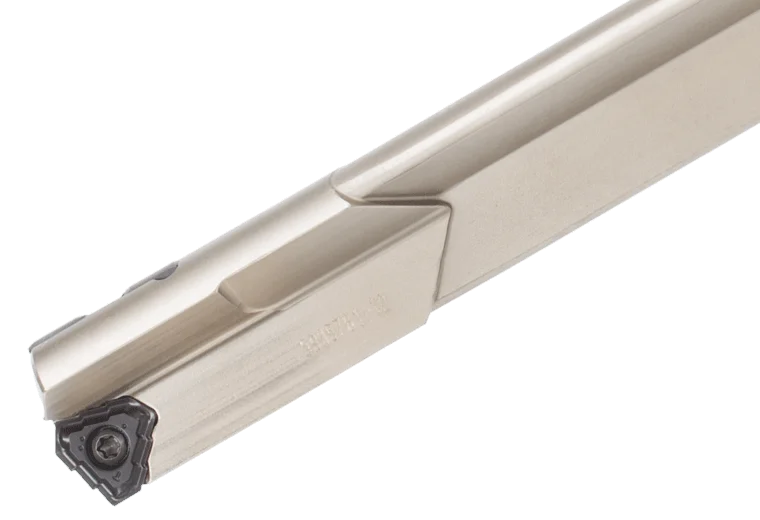

MCTR19.50XM25-15 Outlet

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 19.5 mm Cutting Diameter Maximum (DCX) 19.5 mm Cutting Diameter Minimum (DCN) 19.5 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 343 mm Master Insert Identification (MIID) TOHT090305R-NDJ Point Length (PL) 3 mm Overall Length (OAL) 402 mm Shank Length (LS) 56 mm Usable Length (LU) 303 mm Usable Length Diameter Ratio (ULDR) 15 Paketvikt 0.651 Längd xD 15xD Diameter ⌀ 19.5 mm Diameter ⌀ 19.5 mm Totallängd 402 mm Antal skär z 1
