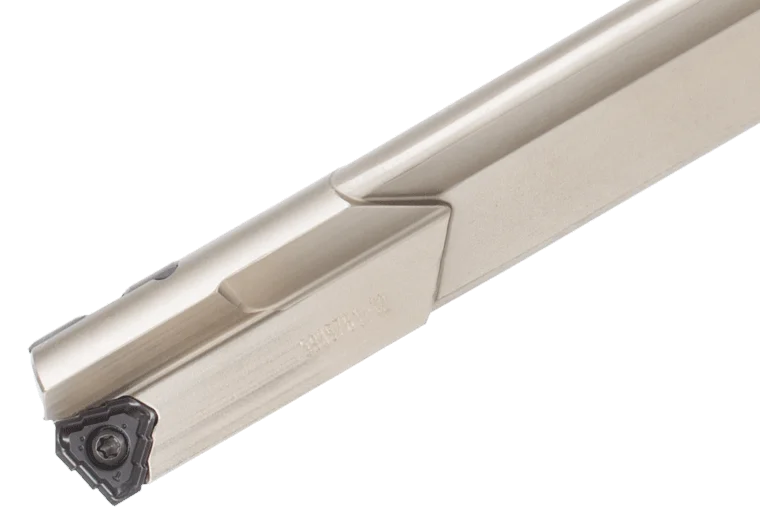

MCTR15.00XM25-25 Lägg i varukorgen

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 15 mm Cutting Diameter Maximum (DCX) 15 mm Cutting Diameter Minimum (DCN) 15 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 438 mm Master Insert Identification (MIID) TOHT070304R-NDJ Point Length (PL) 2 mm Overall Length (OAL) 496 mm Shank Length (LS) 56 mm Usable Length (LU) 402 mm Usable Length Diameter Ratio (ULDR) 25 Paketvikt 0.612 Längd xD 25xD Diameter ⌀ 15 mm Diameter ⌀ 15 mm Totallängd 496 mm Antal skär z 1
