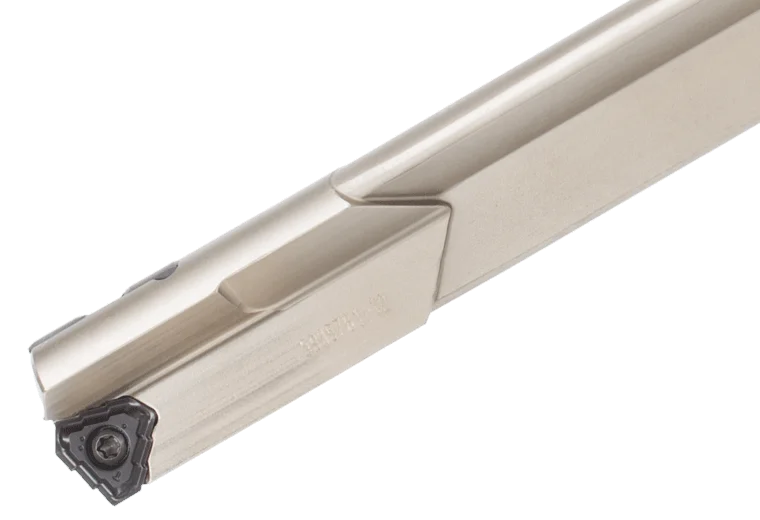

MCTR14.00XM25-40 Handla nu

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 14 mm Cutting Diameter Maximum (DCX) 14 mm Cutting Diameter Minimum (DCN) 14 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 636 mm Master Insert Identification (MIID) TOHT070304R-NDJ Point Length (PL) 2 mm Overall Length (OAL) 694 mm Shank Length (LS) 56 mm Usable Length (LU) 602 mm Usable Length Diameter Ratio (ULDR) 40 Paketvikt 0 Längd xD 40xD Diameter ⌀ 14 mm Diameter ⌀ 14 mm Totallängd 694 mm Antal skär z 1
