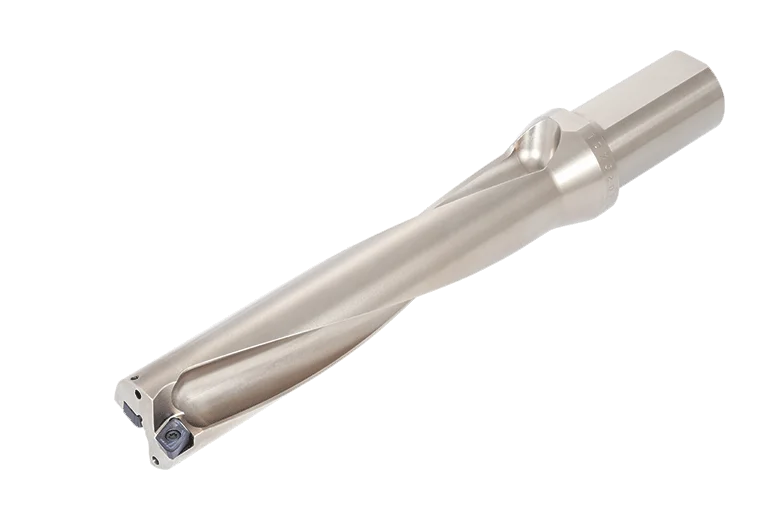

Lågt pris TDX240F25-5

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 25 mm Cutting Diameter (DC) 24 mm Cutting Diameter Maximum (DCX) 24 mm Cutting Diameter Minimum (DCN) 24 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 5 Flange Diameter (DF) 37 mm Functional Length (LF) 143 mm Length Chip Flute (LCF) 124.6 mm Master Insert Identification (MIID) XPMT07H308R-DJ Point Length (PL) 0.58 mm Overall Length (OAL) 197.6 mm Shank Length (LS) 54 mm Usable Length (LU) 120.6 mm Usable Length Diameter Ratio (ULDR) 5 Paketvikt 0.566 Produktslag Modulära insatsborr Längd xD 5xD Diameter ⌀ 24 mm Diameter ⌀ 24 mm Totallängd 197.6 mm Antal skär z 5
