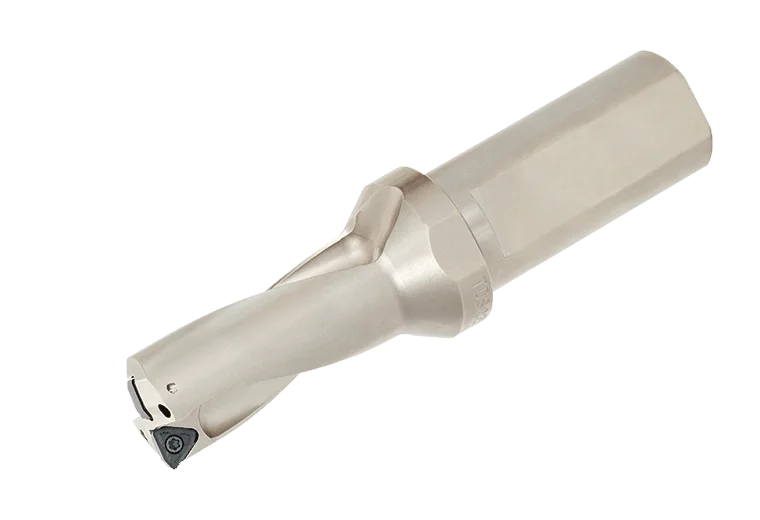

Köp online TDSU1062F-2

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/4″ Cutting Diameter (DC) 1.062″ Cutting Diameter Maximum (DCX) 1.062″ Cutting Diameter Minimum (DCN) 1.062″ Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 1.575″ Functional Length (LF) 3.123″ Master Insert Identification (MIID) WWMU060306R-DJ Point Length (PL) 0.035″ Overall Length (OAL) 5-1/2″ Shank Length (LS) 2.342″ Usable Length (LU) 2.161″ Usable Length Diameter Ratio (ULDR) 2 Paketvikt 1.5498 Produktslag Modulära insatsborr Längd xD 2xD Antal skär z 2
