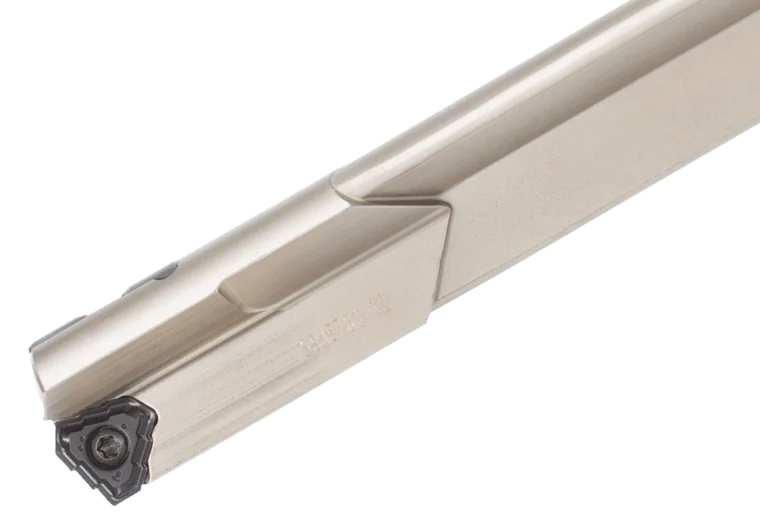

Köp nu MCTR12.50XM20-20

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 20 mm Cutting Diameter (DC) 12.5 mm Cutting Diameter Maximum (DCX) 12.5 mm Cutting Diameter Minimum (DCN) 12.5 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 291 mm Master Insert Identification (MIID) LOGT060204R-NDJ Point Length (PL) 1.8 mm Overall Length (OAL) 342.8 mm Shank Length (LS) 50 mm Usable Length (LU) 261.8 mm Usable Length Diameter Ratio (ULDR) 20 Paketvikt 0.488 Längd xD 20xD Diameter ⌀ 12.5 mm Diameter ⌀ 12.5 mm Totallängd 342.8 mm Antal skär z 1
