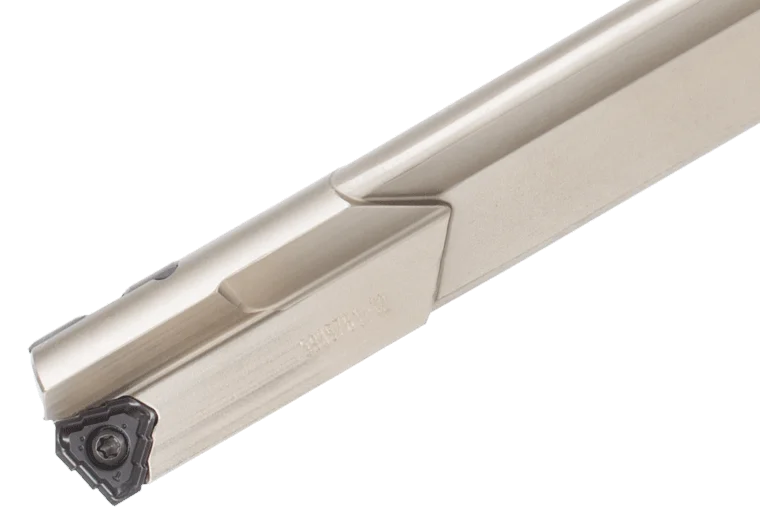

Kampanj MCTR20.00XM32-10

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 20 mm Cutting Diameter Maximum (DCX) 20 mm Cutting Diameter Minimum (DCN) 20 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 255 mm Master Insert Identification (MIID) TOHT090305R-NDJ Point Length (PL) 3 mm Overall Length (OAL) 318 mm Shank Length (LS) 60 mm Usable Length (LU) 213 mm Usable Length Diameter Ratio (ULDR) 10 Paketvikt 0.795 Längd xD 10xD Diameter ⌀ 20 mm Diameter ⌀ 20 mm Totallängd 318 mm Antal skär z 1
