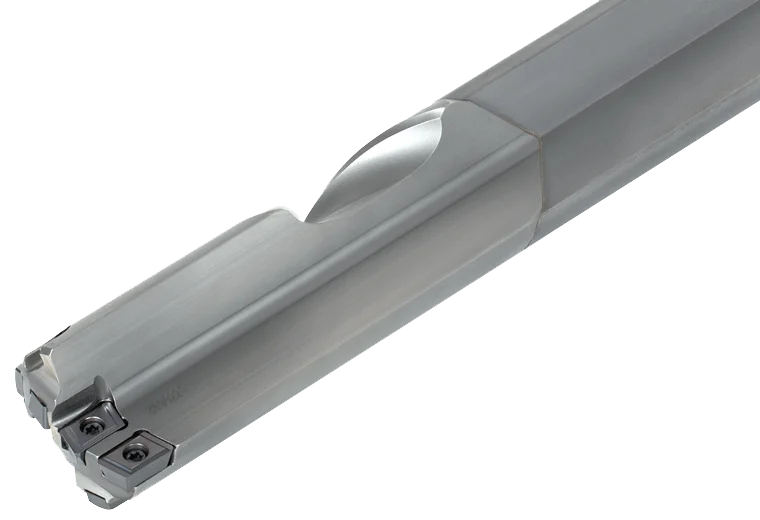

Fynd MCTR33.10XFM40-8

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 40 mm Cutting Diameter (DC) 33.1 mm Cutting Diameter Maximum (DCX) 33.1 mm Cutting Diameter Minimum (DCN) 33.1 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Functional Length (LF) 350 mm Master Insert Identification (MIID) FBM070408L-G-C Point Length (PL) 3 mm Overall Length (OAL) 422 mm Shank Length (LS) 69 mm Usable Length (LU) 275 mm Usable Length Diameter Ratio (ULDR) 8 Paketvikt 0 Produktslag Modulära insatsborr Längd xD 8xD Diameter ⌀ 33.1 mm Diameter ⌀ 33.1 mm Totallängd 422 mm Antal skär z 2
