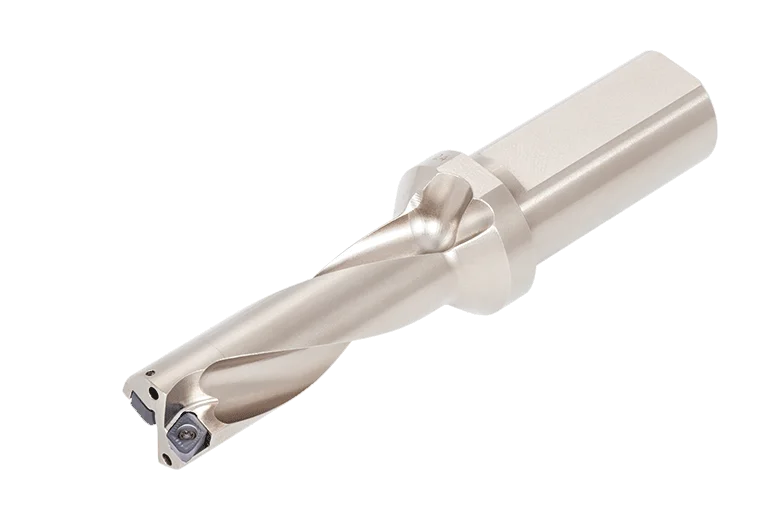

Endast idag TDX320F32-3

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 32 mm Cutting Diameter Maximum (DCX) 32 mm Cutting Diameter Minimum (DCN) 32 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 40 mm Functional Length (LF) 124.3 mm Length Chip Flute (LCF) 101 mm Master Insert Identification (MIID) XPMT08T308R-DJ Point Length (PL) 0.73 mm Overall Length (OAL) 184 mm Shank Length (LS) 59 mm Usable Length (LU) 96.7 mm Usable Length Diameter Ratio (ULDR) 3 Paketvikt 0.916 Produktslag Modulära insatsborr Längd xD 3xD Diameter ⌀ 32 mm Diameter ⌀ 32 mm Totallängd 184 mm Antal skär z 2
