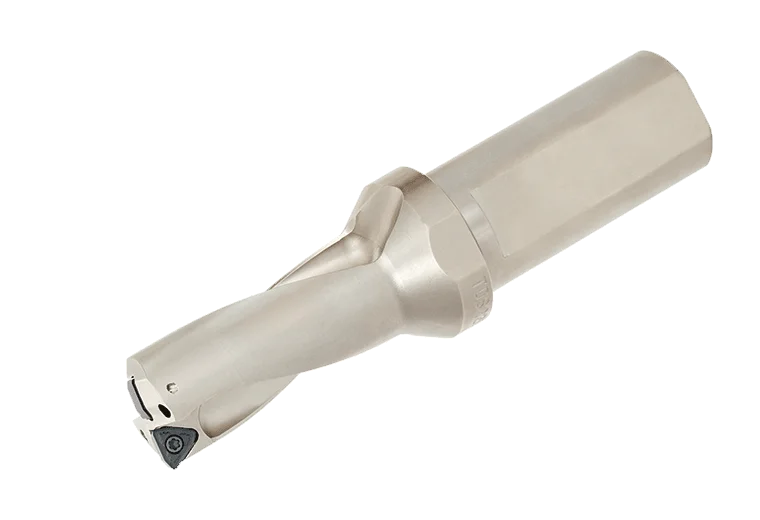

Beställ nu TDS540F40-2

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 40 mm Cutting Diameter (DC) 54 mm Cutting Diameter Maximum (DCX) 54 mm Cutting Diameter Minimum (DCN) 54 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 2 Flange Diameter (DF) 55 mm Functional Length (LF) 151 mm Master Insert Identification (MIID) WWMU13X512R-DJ Point Length (PL) 1.8 mm Overall Length (OAL) 221.8 mm Shank Length (LS) 69 mm Usable Length (LU) 109.8 mm Usable Length Diameter Ratio (ULDR) 2 Paketvikt 2.32 Produktslag Modulära insatsborr Längd xD 2xD Diameter ⌀ 54 mm Diameter ⌀ 54 mm Totallängd 221.8 mm Antal skär z 2
