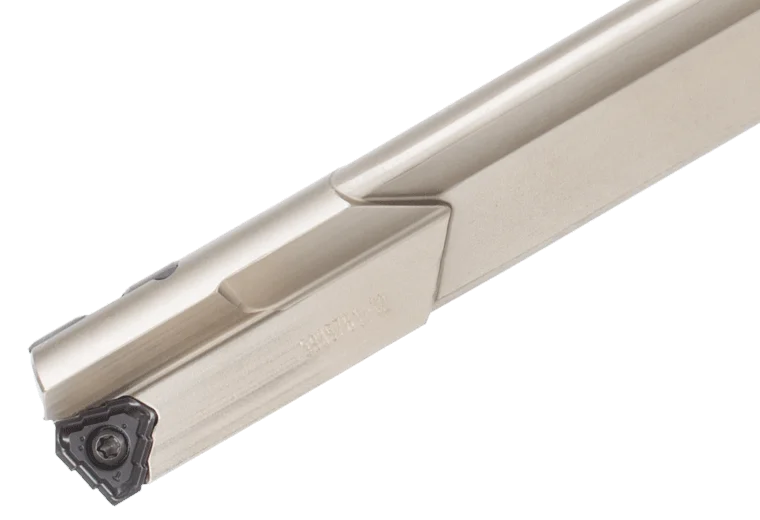

Bästa pris MCTR22.00XM32-10

Beskrivning

Enhet M Applikation | Generell borrning | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 22 mm Cutting Diameter Maximum (DCX) 22 mm Cutting Diameter Minimum (DCN) 22 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 278 mm Master Insert Identification (MIID) TOHT110405R-NDJ Point Length (PL) 3.4 mm Overall Length (OAL) 341.4 mm Shank Length (LS) 60 mm Usable Length (LU) 233.4 mm Usable Length Diameter Ratio (ULDR) 10 Paketvikt 0.866 Längd xD 10xD Diameter ⌀ 22 mm Diameter ⌀ 22 mm Totallängd 341.4 mm Antal skär z 1
