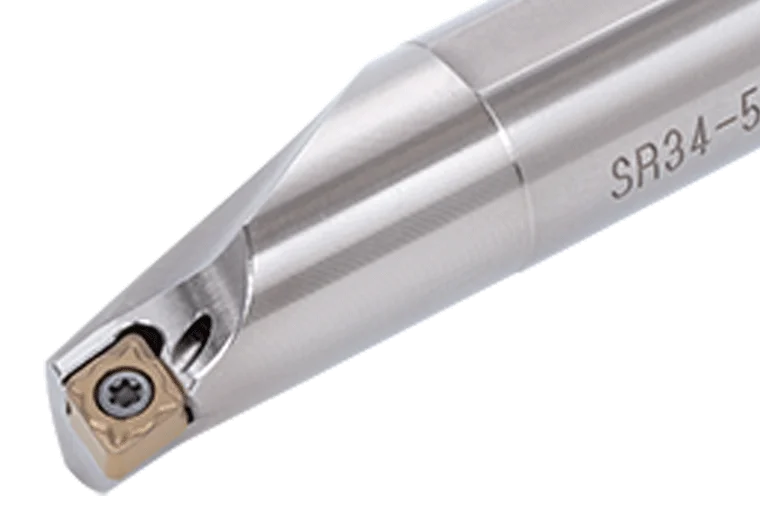

A12M-SCLXR06-D140 Lågt pris

Beskrivning

Enhet M Applikation M Måttenhet Metrisk Tillämpliga material Metric MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 12 mm Connection Diameter Workpiece Side (DCONWS) 12 mm Functional Length (LF) 150 mm Functional Width (WF) 150 mm fz(max) 7 mm Head Length (LH) 24 mm Hub Thickness (THUB) 24 mm Master Insert Identification (MIID) CXMU060304L Maximum Feed per Tooth (fz(max)) CXMU060304L Min D.O.C. 14 mm Minimum Bore Diameter (DMIN) 14 mm Rake Angle Radial (GAMF) -10 Degrees Rake Angle Axial (GAMP) -10 Degrees Ramping Angle Maximum (RMPX) -12.5 Degrees Shank Height (H) 11 mm Shank Length (LS) 11 mm Paketvikt 0.0000 Beläggning | For 80deg Rhombic insert | For Miniature machining | Kvalité/sort Steel
